Description

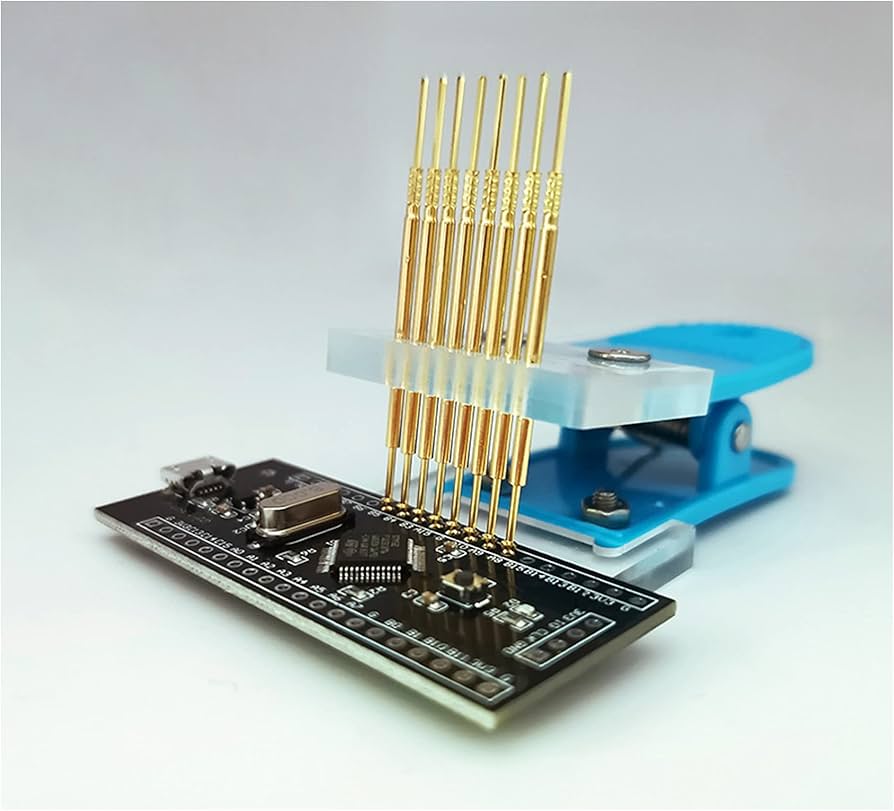

The 2.54mm Pogo Pin PCB Clip Clamp Fixture is a bench accessory for creating temporary electrical contact with 2.54mm pitch pads or headers during programming, test, and validation work.
It is useful when a researcher or developer needs repeatable access to a PCB without soldering permanent leads, especially during firmware loading, diagnostics, fixture-based production checks, or board recovery workflows.
Gold-plated pogo contacts and multi-pin options make this style of fixture practical for development labs, repair benches, and small-scale manufacturing support.
Application
Used to create temporary non-solder contact with compatible PCB pads or headers for programming, diagnostics, and bench validation.
How to Use
- Identify the compatible test points or pad spacing on the authorised target board.
- Select the correct probe count and align the fixture with the contact points.
- Apply consistent pressure to establish contact during programming or testing.
- Remove the fixture after validation or firmware operations are complete.
Product Specification Table
| Pin Pitch |
2.54 mm |
| Probe Options |
3P to 10P variants |
| Contact Type |
Gold-plated pogo pins |
| Use Case |
Temporary programming and PCB test access |
Key Features
- Temporary non-solder contact for development workflows
- Useful for programming, diagnostics, and validation
- Available in multiple pin-count options
- Suitable for lab, repair, and production bench use
- Gold-plated contacts for repeatable probing
Safety Note
Improper alignment may short adjacent contacts or damage pads. Confirm spacing, polarity, and voltage before applying the fixture.
Disclaimer
Some HacKitsune products may be capable of interacting with, analysing, or modifying electronic systems, firmware, and communication protocols for research, development, repair, interoperability testing, and authorised security analysis. Laws relating to reverse engineering and firmware analysis vary between jurisdictions and may be subject to copyright, anti-circumvention, telecommunications, or computer misuse legislation. Users are responsible for ensuring all use complies with applicable laws and is performed only on systems they own or have explicit permission to test.
Hackitsune accepts no liability for misuse of this product. Use responsibly. 🦊
