Radio is an attack surface. This category covers hands-on RF exploitation with gear built for signal interception, analysis, and experimentation. Featuring devices like the HackRF One, Portapack, Evil Crow, a range of antennas, adapters, and RF modules, this collection is designed for researchers working across the wireless spectrum.
The Hackitsune Dual-Band RF Expansion Module for Flipper Zero (400MHz + 900MHz) is a high-performance GPIO add-on designed to significantly extend the Sub-GHz capabilities of the Flipper Zero. This module integrates two dedicated RF transceiver paths covering the ~300–950 MHz spectrum, enabling improved reception sensitivity, stable signal transmission and extended operational range. The dual-module design allows researchers to work across both lower Sub-GHz bands (~300–500 MHz) and higher bands (~800–950 MHz), selectable via an onboard hardware switch. This external module provides a safe interface for extended frequency experimentation, reducing the risk of stressing your flippers onboard components. Technical Requirements Flipper Zero (not included) External antenna (connected before operation) Compatible Sub-GHz firmware (standard or custom - we recommend momentum firmware) 5V GPIO power enabled in Flipper settings (required) Why 5V Power is Required We designed the bord to maximise stability and provide an low noise, filtered power supply with; Stable power delivery for RF transmission bursts Reduced electrical noise improving RF performance Prevention of voltage dips during transmission Using the 3.3V rail may result in SD card instability or corruption due to voltage sag, RF signal degradation and reduced range, and unreliable module behaviour under load. How to Use Attach the module to the Flipper Zero GPIO header. Connect a compatible antenna to the selected RF module. Enable 5V GPIO power in Flipper settings. Select the desired frequency band using the onboard switch. Operate using Sub-GHz applications on the Flipper. Important Usage Notes Always connect an antenna before transmitting (Operating without an antenna can damage RF components) Switch frequency bands only when the device is idle. Use appropriate antennas for the selected frequency band and module. Key Features Dual-band RF expansion (400 MHz + 900 MHz) Extends Flipper coverage across ~300–950 MHz Improved range and signal reception Hardware switch for band selection Designed for stable 5V GPIO operation Disclaimer Devices capable of transmitting radio signals must be used in accordance with local radio spectrum regulations. Ensure appropriate licensing and operate only in authorised testing environments. Hackitsune hardware is designed for professional security research, development, and authorised testing purposes only. Users are responsible for ensuring compliance with all applicable laws and regulations in their jurisdiction. Always obtain proper authorisation before interacting with systems, networks, or devices you do not own. Hackitsune accepts no liability for misuse of this product. Use responsibly. 🦊
$75.00
The Hackitsune 400MHz RF Expansion Module for Flipper Zero is a high-performance Sub-GHz add-on designed to extend the transmission range, signal stability, and overall RF capability of your device. Built around the E07-400M10S RF module, this expansion provides enhanced performance across the 400 MHz Sub-GHz band, enabling stronger and more reliable signal interaction compared to the internal Flipper radio. This makes it particularly useful for RF research, protocol testing, and signal analysis in environments where increased range or signal clarity is required. The module is designed to integrate with the Hackitsune SPI & Serial Adapter Module, providing a clean and stable interface to the Flipper Zero while maintaining flexibility for use in other DIY projects. Its compact form factor and external antenna support ensure optimal performance in field and lab environments. Technical Requirements Flipper Zero (not included) Hackitsune SPI & Serial Adapter Module (required for Flipper use, sold separately) Compatible Sub-GHz firmware or applications External antenna connected before operation Frequency Coverage Based on the E07-400M10S module, typical supported frequency range is approximately 410 MHz – 525 MHz, depending on configuration and firmware. How to Use Connect the module to the SPI & Serial Adapter (sold separately) Attach the assembly to the Flipper Zero GPIO. (ensure the GPIO 5V power is enabled) Connect a compatible antenna. Launch Sub-GHz applications on the Flipper. Important Usage Notes Always connect an antenna before transmitting Operating without an antenna may damage the RF module Ensure correct frequency configuration before transmission, this module works best at 410 MHz – 525 MHz, pushing beyond these frequencies can damage the module Key Features High-power 400 MHz RF expansion module Based on E07-400M10S (C1101) transceiver Extends range and signal reliability vs onboard radio Designed for SPI & Serial Adapter integration External antenna support for optimal performance Compact and modular design Suitable for authorised RF research Disclaimer Devices capable of transmitting radio signals must be used in accordance with local radio spectrum regulations. Ensure appropriate licensing and operate only in authorised testing environments. Hackitsune hardware is designed for professional security research, development, and authorised testing purposes only. Users are responsible for ensuring compliance with all applicable laws and regulations in their jurisdiction. Always obtain proper authorisation before interacting with systems, networks, or devices you do not own. Hackitsune accepts no liability for misuse of this product. Use responsibly. 🦊
$32.00
The Hackitsune SPI and Serial Adapter Module is engineered to extend the functionality of your Flipper Zero while protecting its most critical component: the SD card. By leveraging the Flipper’s dedicated 5V GPIO rail (enabled via GPIO settings), this module provides a clean, stable power supply and GPIO connectivity to external SPI and Serial peripherals without loading the 3.3V rail that services the SD card. Why does this matter? Many external modules draw inconsistent current or introduce electrical noise that can destabilize the 3V rail, risking SD corruption or unexpected resets. The PowerBridge isolates and stabilizes power delivery, ensuring your expansions run clean while your core system remains protected. Designed for Expansion This adapter acts as a reliable foundation for a growing ecosystem of 3rd party and Hackitsune-compatible modules, including: NRF24 (2.4GHz) boards – for wireless research applications 433MHz & 915MHz RF modules – extended sub-GHz experimentation GPS satellite modules – wardriving and geospatial testing Additional SPI & UART-based modules will be added as the ecosystem expands This module is designed for Hackitsune modules, and can support a range of 3rd party modules available online. Always check the pin configuration of modules before connecting to this adaptor and your flipper as incorrect pin/ power connections can damage modules! Whether you're building out a portable RF toolkit or developing custom GPIO integrations, the PowerBridge ensures your setup remains stable under load.
$15.00

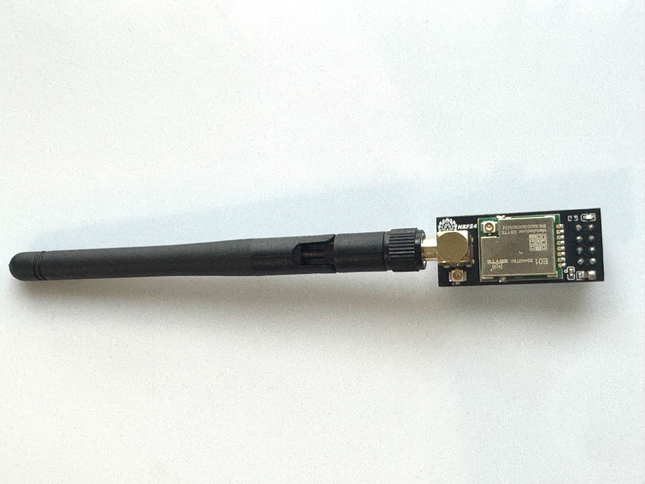

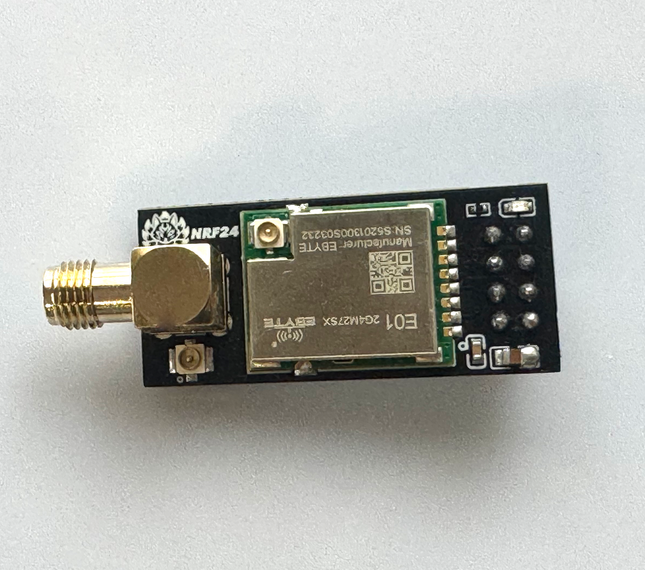

NRF24 Mouse & Keyboard Module for Flipper Zero Slip this little rascal onto your Flipper and watch "air-gapped" illusions wobble. Built for curious defenders, cheeky pen-testers, and anyone who enjoys proving problems exist before they become disasters. This compact nRF24 module gives your Flipper Zero the muscles to scan for, emulate, and interact with nRF24-based wireless HID dongles, the RF technology wireless keyboards and mice often use. It’s great for lab demos, vulnerability audits, and classroom show-and-tell where you want to turn “maybe vulnerable” into “definitely fixed.” Supported by most Flipper firmwares — we recommend Momentum for the smoothest ride. Keyboard & Mouse Jacking Some older wireless keyboards/mice and their tiny USB dongles trust RF traffic they really shouldn’t. When links accept unauthenticated or poorly authenticated packets, attackers can inject keystrokes or mouse actions remotely. That’s keyboard jacking / mouse jacking: scary-sounding, but exactly the kind of thing you should only test for in a controlled, authorised environment. This module helps you demonstrate the risk so you can fix it. Compatibility & firmware Works with most Flipper Zero firmware branches. Momentum firmware recommended. Check your firmware docs for specific nRF24 HID features. What’s in the box nRF24 RF module (Flipper-compatible form factor. This module can be plugged into the flipper zero, or DIY ESP/ Arduino project using breadboard / jumper cables. We recommend using a flipper adaptor for ease of use. Disclaimer Hackitsune hardware is designed for professional security research, development, and authorised testing purposes only. Users are responsible for ensuring compliance with all applicable laws and regulations in their jurisdiction. Always obtain proper authorisation before interacting with systems, networks, or devices you do not own. Hackitsune accepts no liability for misuse of this product. Use responsibly. 🦊
$19.99
Amplify weak RF signals and enhance your wireless receiving setup with this compact, wideband Low Noise Amplifier, offering up to 20dB nominal gain across a broad range of radio frequency applications. The 0.1MHz–6GHz Wideband Low Noise Amplifier (LNA) is a versatile RF preamplifier designed for Software Defined Radio (SDR), antenna systems, radio receivers, RF experimentation and wireless hardware development. Engineered to amplify low-level RF signals while minimising additional noise, this module can help improve usable signal levels in appropriately configured receiving systems. Its wide advertised frequency coverage makes it suitable for experimentation across HF, VHF, UHF and microwave frequencies, including amateur radio, FM reception, ADS-B, ISM bands and 2.4GHz wireless applications. Featuring a compact metal enclosure, 50Ω SMA connectors and a nominal 20dB gain specification, the amplifier integrates into compatible RF signal chains and portable testing environments. Key Features Wideband 0.1MHz–6GHz coverage: Suitable for a diverse range of RF receiving, monitoring and electronic development applications. Nominal 20dB gain: Amplifies weak incoming RF signals to improve signal levels at compatible receivers. Low-noise architecture: Designed to minimise additional noise when amplifying low-level RF signals. High-linearity design: Supplier-specified +35dBm output third-order intercept point (OIP3) for improved handling of complex RF signal environments. 50Ω RF impedance: Compatible with standard 50Ω RF systems, antennas and SDR equipment. SMA female connectors: Convenient RF input and output connections. 5V power requirements: Operates from a nominal 5V supply at approximately 70mA. Bias Tee compatibility: Supports RF-cable power delivery on the applicable non-battery-powered configuration. Compact metal enclosure: Protects the amplifier electronics and provides a practical form factor for portable setups. Multiple configuration options: Available with or without a battery. Technical Specifications Specification Details Product Type Wideband RF Low Noise Amplifier Frequency Range 0.1MHz–6GHz (advertised) Gain 20dB nominal, specified at 1.95GHz RF Input Impedance 50Ω RF Output Impedance 50Ω RF Connectors SMA Female Supply Voltage 5V DC Supply Current Approximately 70mA Power Consumption Approximately 350mW Output IP3 +35dBm Input Power Ruggedness +22dBm CW Power Options With Battery / Without Battery Enclosure Metal RF Application Receive-Side Signal Amplification Gain, noise figure and linearity vary with frequency and operating conditions. The 20dB specification is quoted at approximately 1.95GHz and should not be interpreted as guaranteed constant gain across the full frequency range. Technical Requirements Compatible SDR receiver, RF scanner, radio receiver or RF measurement equipment. Suitable 50Ω antennas, coaxial cables and SMA adapters. Regulated 5V power source or compatible Bias Tee arrangement, depending on the selected variant. Appropriate RF filtering where required to prevent strong unwanted signals from overloading the receiving system. Applications Software Defined Radio (SDR) Use the LNA with compatible SDR receivers, such as RTL-SDR, SDRplay or HackRF-based receiving systems, to amplify weak signals before they reach the receiver input. Particularly useful for antenna installations with significant coaxial cable losses or low received signal levels. RF Signal Reception & Monitoring Experiment with a wide range of radio signals, including: HF and shortwave radio reception. FM broadcast signal monitoring. VHF and UHF communications. 433MHz and 868/915MHz ISM signals. 1090MHz ADS-B aircraft signal reception. 2.4GHz wireless signal analysis. General RF receiver development and experimentation. Antenna & RF System Development Explore antenna performance, receiver sensitivity and signal-chain optimisation when developing RF electronics. The amplifier can also be incorporated into compatible laboratory measurement setups when appropriate power levels, calibration and signal handling are observed. Power Supply & Configuration A compatible receiver or external Bias Tee injector must provide the required supply voltage and current. Confirm the amplifier's RF port power-injection arrangement before connecting power. How to Use Connect the antenna: Attach a suitable 50Ω antenna or RF signal source to the amplifier's RF input. Connect the receiver: Connect the amplifier RF output to your SDR, receiver or measurement device using suitable SMA cabling. Supply power: Provide the appropriate 5V supply through the supported power arrangement or use the battery-equipped version. Configure your receiver: Select the desired frequency and initially reduce the receiver's internal gain to avoid overloading. Monitor signal performance: Compare received signal levels, signal-to-noise ratio and unwanted interference with and without amplification. Optimise the signal chain: Add appropriate band-pass filters or attenuation where necessary to manage strong nearby signals. Tip: For receiving applications, placing the LNA close to the antenna can help compensate for losses in the coaxial cable between the antenna and receiver. Firmware & Software The RF amplifier is an analogue hardware accessory and does not require firmware or software installation. It can operate alongside compatible SDR software and receiver systems, including: SDR++ SDR# GNU Radio SDRangel Other compatible RF monitoring and analysis software The amplifier does not require software drivers. Any necessary configuration is performed through the connected receiver or SDR system. Package Contents 1 × Wideband RF Low Noise Amplifier Module 1 × USB Cable (supplier-listed accessory) Available in With Battery and Without Battery configurations. Accessories and physical appearance may vary between manufacturer hardware revisions. The exact USB cable function and power connection arrangement should be verified for the supplied variant. Preventative Measures & Handling Receive-side use: This module is intended for low-level RF signal amplification and is not a high-power RF transmitter amplifier. Avoid transmitter connections: Do not connect directly to an active transmitter, transceiver transmit output or high-power RF source. Verify power compatibility: Use a regulated 5V supply and confirm Bias Tee polarity, voltage and current capability before connection. Avoid receiver overload: Amplification can worsen reception when strong signals cause receiver saturation or intermodulation. Use appropriate filtering: Band-pass filters are recommended where strong out-of-band signals are present. Observe the RF signal direction: Connect the antenna to RF IN and receiver to RF OUT. Protect against electrostatic discharge: Use suitable ESD precautions when handling RF connectors and antenna systems. Protect against environmental exposure: Keep the amplifier dry and avoid excessive heat. Disclaimer This product is intended for authorised RF research, electronics experimentation, wireless receiver development and educational applications. The amplifier is designed for receive-side RF signal amplification and is not intended for direct connection to high-power RF transmitters. Improper use may damage the amplifier or connected equipment. Adding amplification does not guarantee improved reception. Performance depends on antenna configuration, RF interference, receiver characteristics, cable losses, filtering and operating frequency. Users are responsible for ensuring their RF equipment and activities comply with applicable local regulations.
$20.00
Professional RF analysis in the palm of your hand. Measure antennas, analyse RF circuits, characterise filters and troubleshoot wireless hardware with the upgraded NanoVNA-H Plus, featuring an extended 50kHz–2.7GHz frequency range. The NanoVNA-H Plus is a compact, portable Vector Network Analyser (VNA) designed for electronics enthusiasts, RF engineers, amateur radio operators and wireless hardware developers who need powerful RF measurement capabilities without the expense of traditional laboratory equipment. Featuring an upgraded frequency range of 50kHz to 2.7GHz, a 2.8-inch colour touchscreen and up to 80dB dynamic range, the NanoVNA-H Plus provides a practical platform for measuring antenna impedance, standing wave ratio (SWR), return loss, insertion loss and RF network characteristics. Whether you're designing antennas, tuning RF circuits, testing filters or diagnosing signal losses, the NanoVNA-H Plus delivers valuable measurement capabilities in a rechargeable handheld device. Key Features Extended 50kHz–2.7GHz frequency coverage: Analyse RF circuits and antennas across HF, VHF, UHF and portions of the microwave spectrum, including 433MHz, 868/915MHz and 2.4GHz applications. Up to 80dB dynamic range: High-sensitivity transmission measurements with frequency-dependent performance. 2.8-inch colour touchscreen: Intuitive onboard controls and real-time visualisation of measurement data. Dual-port RF analysis: Measure reflection and transmission characteristics through dedicated Port 1 and Port 2 connections. S-Parameter measurements: Analyse S11 and S21, including impedance, reflection, insertion loss and transmission response. Smith chart visualisation: Understand complex impedance and evaluate matching networks. Antenna tuning and SWR measurements: Evaluate antenna resonance, impedance matching and return loss. Built-in 1000mAh rechargeable battery: Portable operation without continuous USB power. MicroSD storage support: Compatible with MicroSD cards up to 32GB using SPI mode. 101-point frequency sweeps: Capture and visualise measurements across configurable frequency ranges. High-stability frequency reference: Supplier-specified frequency accuracy better than 0.5ppm. USB Type-C connectivity: Supports charging and compatible computer-based workflows. Calibration accessories included: Supplied Open, Short and Load standards enable practical measurement calibration. Technical Specifications Specification Details Model NanoVNA-H Plus Device Type Handheld Vector Network Analyzer Frequency Range 50kHz – 2.7GHz Dynamic Range (50kHz–900MHz) 80dB Dynamic Range (900MHz–1.5GHz) 60dB Dynamic Range (1.5GHz–2.7GHz) 50dB Display 2.8-inch Colour Touchscreen RF Ports 2 × SMA, Port 1 and Port 2 Measurement Functions S-Parameters, SWR, Phase, Delay, Smith Chart Frequency Accuracy Better than 0.5ppm (manufacturer stated) Frequency Stability Better than 2.5ppm (manufacturer stated) Sweep Points 101 Battery Built-in 1000mAh Rechargeable Lithium Battery External Interface USB Type-C Memory Support MicroSD up to 32GB, SPI Mode Additional Feature RTC Support Calibration Open, Short, Load Operating Mode Standalone or supported PC-connected operation Dynamic range decreases at higher measurement frequencies. All measurement performance specifications are supplier stated and depend on operating conditions, calibration and firmware. RF Measurement Capabilities Antenna Analysis & SWR Testing Measure antenna impedance, identify resonant frequencies and evaluate standing wave ratio (SWR). Useful for antenna design, tuning and troubleshooting across a wide range of radio frequency applications. S11 – Reflection & Impedance Analysis Measure reflected signals to evaluate impedance mismatches, return loss and reflection coefficients. Use Smith charts to visualise complex impedance and understand how RF components behave across different frequencies. S21 – Transmission & Filter Analysis Characterise the transmission performance of RF networks, filters, attenuators and signal paths. Measure insertion loss and identify filter cutoff frequencies, passbands and attenuation characteristics. Phase & Group Delay Examine phase response and group delay to understand signal propagation and frequency-dependent behaviour through compatible RF networks. RF Component Characterisation Evaluate capacitors, inductors, resonant circuits, impedance-matching networks and passive RF components. Ideal for use with the Hackitsune NanoVNA 18-in-1 RF Demo & Calibration Board, available separately. Technical Requirements Basic knowledge of RF measurement, antenna tuning or electronics is recommended. Compatible SMA RF cables, adapters or connectors appropriate to the device under test. Calibration using the supplied standards is recommended before measurement. Optional computer and compatible NanoVNA analysis software for advanced measurement workflows. MicroSD card up to 32GB for supported storage functionality. Firmware & Software The NanoVNA-H Plus includes onboard firmware and operates independently using its integrated touchscreen. Compatible desktop analysis software may provide additional capabilities including measurement visualisation, data capture and detailed frequency response analysis. Firmware compatibility varies between NanoVNA hardware revisions. Only install firmware specifically verified for this 2.7GHz NanoVNA-H Plus hardware variant. How to Use Power on the analyser: Charge the integrated battery if necessary and switch on the device. Set the frequency range: Configure the start and stop frequencies appropriate to the antenna or RF component being tested. Calibrate the VNA: Connect the supplied Open, Short and Load standards as directed by the analyser's calibration process. Connect your device under test: Attach the antenna to Port 1 for reflection measurements, or connect a compatible two-port RF circuit between Port 1 and Port 2 for transmission measurements. Select measurement traces: Choose SWR, return loss, Smith chart, phase or other supported measurements. Analyse the results: Observe impedance, resonant frequencies, insertion loss and other relevant RF characteristics. Record your measurements: Use supported MicroSD or PC-connected measurement workflows where available. Applications The NanoVNA-H Plus is ideal for: Antenna design, development and tuning. HF, VHF and UHF amateur radio experimentation. 433MHz and 868/915MHz RF hardware development. 2.4GHz Wi-Fi and Bluetooth antenna analysis. RF filter and attenuator characterisation. Impedance matching and RF circuit optimisation. Coaxial cable and connector troubleshooting. PCB RF design and wireless product development. Electronics education, experimentation and authorised hardware research. Package Contents Each NanoVNA-H Plus kit includes: 1 × NanoVNA-H Plus 2.7GHz Vector Network Analyzer 2 × 20cm SMA Male-to-Male RG174 RF Cables 1 × USB Type-C to Type-C Cable 1 × USB Type-C Data Cable 1 × Touchscreen Stylus 1 × Paddle Accessory 1 × SMA Open Calibration Standard 1 × SMA Short Calibration Standard 1 × SMA 50Ω Load Calibration Standard 1 × SMA Female-to-Female Adapter 1 × Simplified User Manual Preventative Measures & Handling Never connect the VNA directly to an active RF transmitter or powered RF output without suitable isolation and protection. Avoid applying DC voltage or excessive RF power to the measurement ports. Perform appropriate calibration before precision measurements. Use quality SMA connectors and avoid excessive tightening. Protect the touchscreen and RF connectors during transport. Do not install firmware intended for older NanoVNA-H or NanoVNA-H4 hardware without verifying compatibility. Use appropriate ESD precautions when handling sensitive RF components. For accurate high-frequency measurements, minimise cable movement and maintain consistent connector conditions after calibration. Essentials The device needs to be calibrated with each use, we recomend using the NanoVNA calibration board (sold separatly). Disclaimer This product is intended for electronics experimentation, RF engineering, antenna testing, education and authorised hardware research. The NanoVNA-H Plus is a compact, general-purpose Vector Network Analyser and is not a substitute for laboratory-certified RF measurement equipment. Measurement accuracy and achievable dynamic range depend on frequency, calibration, cables, firmware and operating conditions. This device is a network analyser and is not designed to function as a general-purpose real-time spectrum analyser or RF signal transmitter. Hackitsune is not responsible for equipment damage resulting from improper connections, excessive input signals, incompatible firmware or incorrect operation.
$107.00
Explore, measure and understand radio frequency circuits with this versatile 18-in-1 RF testing and calibration kit, designed for NanoVNA vector network analysers. The NanoVNA RF Test & Calibration board is an essential hands-on learning and diagnostic accessory for RF enthusiasts, electronics engineers, amateur radio operators and hardware researchers. Featuring 18 integrated test modules, this compact board enables practical experimentation with RF filters, signal attenuation, impedance matching, RLC circuits and network analyser calibration. Designed for use with NanoVNA-H, NanoVNA-F and other compatible vector network analysers, the kit provides a convenient platform for visualising how electronic circuits respond to different frequencies. Whether you're learning RF fundamentals, developing wireless hardware or improving your measurement techniques, this test board makes complex RF concepts easier to explore. Key Features 18 integrated RF test modules: Explore a variety of passive RF networks and circuit characteristics. Four dedicated RF filters: Test 30MHz low-pass, 100MHz high-pass, 433MHz SAW band-pass and 6.5MHz ceramic band-stop filters. Impedance and RLC analysis: Experiment with resistor, inductor and capacitor networks, including series and parallel configurations. Calibration reference circuits: Dedicated Open, Short and Load circuits support VNA familiarisation and measurement practice. Attenuation testing: Investigate signal loss and attenuation across different frequencies. Real-world RF measurements: Observe S-parameters, insertion loss, return loss, impedance and SWR using a compatible VNA. Includes two U.FL patch cables: Connect the board to your measurement equipment using suitable RF interfaces. Compact and portable: Lightweight PCB design makes it ideal for the workbench, classroom or mobile electronics toolkit. Technical Specifications Specification Details Product Type RF Demonstration & Calibration Test Board Integrated Modules 18 Low-Pass Filter (LPF) 30MHz nominal High-Pass Filter (HPF) 100MHz nominal Band-Pass Filter (BPF) 433MHz SAW Band-Stop Filter (BSF) 6.5MHz ceramic trap Circuit Types R, L, C, series and parallel RLC networks Calibration References Open, Short and Load Additional Function RF attenuation testing RF Connectivity U.FL / IPEX Compatible Equipment NanoVNA-H, NanoVNA-F and compatible VNAs External Power Not required PCB Colour Green Filter frequencies are nominal. Actual measurements depend on component tolerances, cable losses, calibration quality and the capabilities of the connected VNA. Technical Requirements Compatible NanoVNA or vector network analyser with appropriate measurement frequency coverage. Suitable RF cables and adapters for connecting U.FL interfaces to the analyser. Basic familiarity with VNA calibration and frequency sweeps is recommended. Firmware & Software No firmware or software installation is required for the RF Demo Kit itself. The board operates as a passive RF testing accessory and can be used with compatible NanoVNA firmware and PC analysis software. Depending on your analyser, available measurements may include: S11 – Return loss, reflection coefficient and impedance. S21 – Transmission response, insertion loss and attenuation. VSWR – Voltage Standing Wave Ratio. Smith charts – Visual representation of complex impedance. Frequency sweeps – Filter response and resonance analysis. How to Use Connect the test board: Attach the supplied U.FL patch cables to the selected RF test module and connect them to your NanoVNA using suitable adapters. Calibrate your analyser: Perform the appropriate VNA calibration across your intended measurement range. Select a module: Choose from the available filter, RLC, attenuation or reference circuits. Configure the frequency sweep: Select a frequency range suitable for the circuit being tested. Perform measurements: Observe impedance, return loss, insertion loss, SWR or filter characteristics. Compare results: Experiment with different modules to understand how components influence RF signal behaviour. Applications RF circuit design and electronic prototyping. NanoVNA calibration practice and training. RF filter frequency-response testing. Antenna impedance and matching education. Wireless electronics development. Signal attenuation and transmission analysis. Amateur radio experimentation. Educational workshops and engineering laboratories. Package Contents 1 × NanoVNA 18-in-1 RF Demo Test Board 2 × U.FL RF Patch Cables Vector Network Analyser is not included. Preventative Measures & Handling Do not connect active transmitters, external power supplies or high-power RF sources to the board. Handle U.FL connectors carefully to avoid damage to their miniature RF contacts. Ensure correct cable connections before performing measurements. Use appropriate calibration procedures for accurate and repeatable results. Protect the exposed PCB from static discharge, moisture and conductive surfaces. Integrated reference circuits are suitable for educational and general-purpose measurement practice, not as substitutes for certified precision calibration standards. Resources NanoVNA Firmware & Documentation https://github.com/ttrftech/NanoVNA NanoVNA Community Project https://github.com/hugen79/NanoVNA-H Disclaimer This product is intended for educational use, electronics development, RF experimentation and authorised research. It is a passive testing accessory and requires a compatible vector network analyser to perform measurements. The included RF reference circuits are intended for demonstration and general-purpose calibration practice rather than laboratory-certified calibration. Actual performance may vary depending on the connected equipment and measurement configuration. Hackitsune is not responsible for equipment damage resulting from incorrect connections, excessive RF power or improper handling.
$25.00
A compact external LoRa antenna for Meshtastic nodes, telemetry boards and compatible IoT hardware. Select the frequency version that matches your radio module and local regional allocation. Key Features 915 MHz 5 dBi omnidirectional gain SMA male antenna connection U.FL/IPEX pigtail for compatible development boards Suitable for Meshtastic and LoRa projects Specifications Frequency: 915 MHz Nominal impedance: 50 Ω Connector: SMA male with U.FL/IPEX cable assembly Radiation pattern: omnidirectional Quantity: 1 Compatibility Compatible with LoRa boards using a U.FL/IPEX socket and operating at the selected frequency. Common examples include Meshtastic development nodes. Package Contents 1 × selected-frequency antenna and pigtail assembly.
$12.95
Improve directional 2.4 GHz coverage for compatible Wi-Fi equipment with this compact panel-style antenna. Its focused radiation pattern is useful for bench testing, fixed links and controlled wireless development environments. Key Features Advertised 8 dBi directional gain Compact radar/panel-style enclosure Designed for the 2.4 GHz Wi-Fi band Choice of SMA male connector Approximate panel dimensions: 90 × 110 mm Package Contents 1 × directional Wi-Fi antenna. Important Note Connector naming can be confusing: verify both the thread and centre-pin arrangement before ordering.
$18.95
Description The Hackitsune 900MHz RF Expansion Module for Flipper Zero is a high-performance Sub-GHz add-on designed to extend the transmission range, signal stability, and frequency coverage of your device into the higher Sub-GHz bands. Built around the E07-900M10S RF module, this expansion enables operation across the 855 – 925 MHz range, delivering stronger output power and improved reception sensitivity compared to the onboard Flipper radio. This makes it particularly useful for authorised RF research, protocol analysis, and testing in environments where higher-frequency Sub-GHz bands are commonly used. The onboard Flipper radio is not designed for reliable transmission in these higher frequency ranges and attempting to operate beyond its intended bands may lead to degraded performance or potential hardware stress. This external module provides a dedicated and safer pathway for working within the 800–900 MHz spectrum. Designed to integrate with the Hackitsune SPI & Serial Adapter Module, the board provides a stable and modular interface to the Flipper Zero while also remaining compatible with other embedded platforms. Technical Requirements Flipper Zero Hackitsune SPI & Serial Adapter Module (required for Flipper use) Compatible Sub-GHz firmware or applications External antenna connected before operation Frequency Coverage Based on the E07-800M10S module supported frequency range is 855 – 925 MHz, depending on configuration and firmware. How to Use Connect the module to the SPI & Serial Adapter. Attach the assembly to the Flipper Zero GPIO. Connect a compatible antenna. Launch Sub-GHz applications on the Flipper. Perform authorised signal testing or analysis. Important Usage Notes Always connect an antenna before transmitting - Operating without an antenna may damage the RF module Ensure correct frequency configuration before transmission Use only in authorised and controlled environments Key Features High-power 800–900 MHz RF expansion module Based on E07-800M10S (C1101) transceiver Improved range and signal stability vs onboard radio Designed for SPI & Serial Adapter integration External antenna support for optimal performance Disclaimer Devices capable of transmitting radio signals must be used in accordance with local radio spectrum regulations. Ensure appropriate licensing and operate only in authorised testing environments. Hackitsune hardware is designed for professional security research, development, and authorised testing purposes only. Users are responsible for ensuring compliance with all applicable laws and regulations in their jurisdiction. Always obtain proper authorisation before interacting with systems, networks, or devices you do not own. Hackitsune accepts no liability for misuse of this product. Use responsibly. 🦊
$32.00
The Credit Card Sized Multi-Tool. The KIISU V4BR is one of the most exciting portable development platforms available today. Designed as a credit card-sized alternative to the Flipper Zero, KIISU packs an impressive collection of wireless, contactless and hardware interfaces into a form factor small enough to fit inside your wallet. Whether you're experimenting with RFID, NFC, Sub-GHz, infrared, Bluetooth or custom GPIO hardware, KIISU provides an incredibly capable development platform while remaining compatible with a large ecosystem of Flipper Zero firmware and accessories. Unlike many hobbyist development boards, KIISU has been engineered to be genuinely portable, making it ideal for engineers, makers, hardware developers and authorised security researchers who want a compact platform they can carry every day. Flipper Compatibility KIISU is designed to run firmware derived from or compatible with much of the Flipper Zero ecosystem and supports many existing Flipper applications and GPIO expansion boards. Because firmware projects evolve independently, application compatibility may vary between releases. Why We Think KIISU is Special There are plenty of development boards. There are plenty of wireless tools. There are very few devices that combine: Wallet-sized portability Multiple wireless technologies Open firmware GPIO expansion Excellent community support Rechargeable operation Modern USB-C connectivity into one beautifully engineered platform. KIISU strikes an excellent balance between capability, portability and price. Firmware KIISU ships with its own firmware but also supports firmware and applications derived from the wider Flipper ecosystem. As firmware is actively developed, we always recommend using the latest official releases for the best experience and newest features. Recent updates have addressed stability, AUX MCU configuration and charging behaviour. Hardware Features Sub-GHz CC1101 Sub-GHz transceiver External antenna support Compatible with many Sub-GHz applications NFC ST25R3916 NFC reader/emulator Integrated antenna Read, emulate and experiment with NFC technologies RFID Built-in RFID reader RFID emulation capabilities Integrated antenna Infrared IR transmitter IR receiver Perfect for experimenting with IR protocols and remote control applications. Bluetooth Bluetooth Low Energy (BLE) GPIO Expansion Pin-compatible GPIO interface supporting many existing Flipper Zero compatible expansion boards. iButton Integrated iButton support. Package Contents KIISU V4BR Development Board USB-C connectivity Quick Start documentation (Battery and accessories may vary depending on bundle selected.) Useful Links Official Website KIISU Official Website Documentation Official Documentation GitHub KIISU GitHub Organisation Main Firmware Repository Aux MCU Firmware Firmware https://momentum-fw.dev/update?branch=kiisu-mntm Notice Hackitsune hardware is designed for professional security research, development, and authorised testing purposes only. Users are responsible for ensuring compliance with all applicable laws and regulations in their jurisdiction. Always obtain proper authorisation before interacting with systems, networks, or devices you do not own. Hackitsune accepts no liability for misuse of this product. Use responsibly. 🦊 Community Reviews Meet KIISU KIISU vs Flipper Zero Flipper Zero Clone? Hackitsune isn't simply stocking KIISU we're building an ecosystem around it. Coming Soon from Hackitsune Custom low-profile GPIO expansion modules designed specifically for the KIISU form factor While KIISU supports existing Flipper Zero GPIO accessories, the credit card design deserves hardware that is equally compact. Our upcoming expansion boards are being designed specifically for KIISU to minimise overhang while maintaining full compatibility with the GPIO interface. Examples currently in development include: ESP32-c5 WiFi module High capacity power module External RF antenna mod kit. Custom Protective Cases We're also developing a range of: protective cases and every day carry cases designed specifically for KIISU.
$189.00
These compact Antennas measure up at 3cm in length, useful in senarios where you dont want large antennas sticking out. Despite the size these antennas provide pack 3dBi signal strnegth into a 3cm package. Specifications 433MHz (Frequency): Optimized for devices operating in the UHF band, commonly used for garage door openers, telemetry, IoT sensors, and remote controls. 3dBi (Gain): Amplifies the signal by 3 decibels relative to an isotropic radiator (dBi). This increases range compared to a lower gain antenna. Rubber Antenna (Type): Frequently called a "rubber duck" antenna; flexible, durable, and encased in rubber for indoor/general-purpose use. SMA Male (Connector): Screws directly onto devices with an SMA Female connector (fits Hackitsune 433Mhz Flipper Module and the 400Mhz side of the dual frequency (400-900mhz) flipper module). 3cm (Length): Indicates the physical length, making it ideal for compact applications where space is limited, though efficiency can sometimes be lower than longer alternatives.
$9.00
