Description

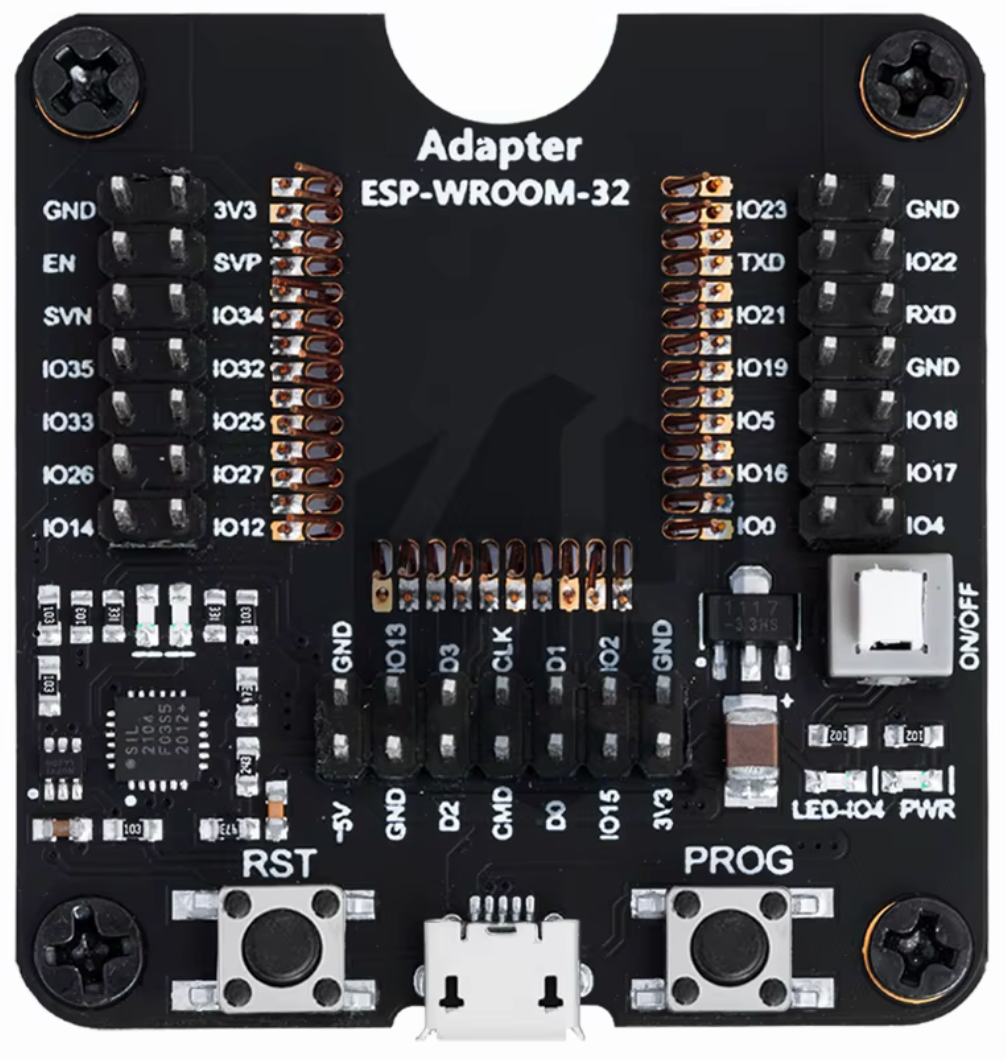

The ESP32 WROOM Programming Tool is a practical bench accessory for flashing, testing, and iterating on WROOM-class ESP32 modules during embedded development.
It is intended for engineers and researchers who want a stable programming workflow for module-level bring-up, firmware validation, and rapid test cycles before integrating hardware into larger systems.
Typical use cases include firmware development, peripheral validation, communications testing, and controlled prototype evaluation using standard ESP32 software ecosystems.
Technical Requirements
Requires a compatible host computer and the usual ESP32 development toolchain such as esptool, ESP-IDF, Arduino, or PlatformIO.
Best suited to controlled development environments using supported WROVER-class modules and 3.3V logic.
- To use first install the CP2104 serial chip driver for your system.
- Press the module into the coppr clips. (ESP32 module not included)
- Power on and connect to your PC via usb cable.
- Configure the com port of your ESP32 flasher/ serial software of choice.
Product Specifications
| Supported Modules |
ESP32 WROOM-class modules |
| Programming Interface |
UART / serial flashing workflow |
| Logic Voltage |
3.3V environment |
| Use Case |
Development, programming, and test validation |
| Compatibility |
ESP-IDF, Arduino, PlatformIO, custom ESP32 firmware |
Safety Note
Improper connections may damage connected hardware. Confirm voltage levels, module fitment, and programming pin mapping before use.
