Description The Hackitsune ESPKey Wiegand Interception & Replay Module is a compact, inline hardware platform designed for professional access control testing, diagnostics, and research.
Designed to sit transparently between a reader and controller, ESPKey operates on standard 5V Wiegand signalling, making it compatible with a wide range of access control systems including card readers, keypads, fobs, and many biometric devices that output Wiegand downstream.

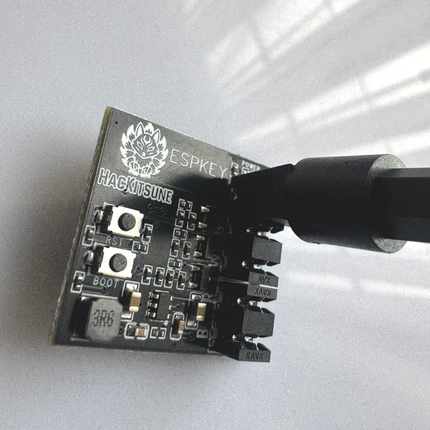

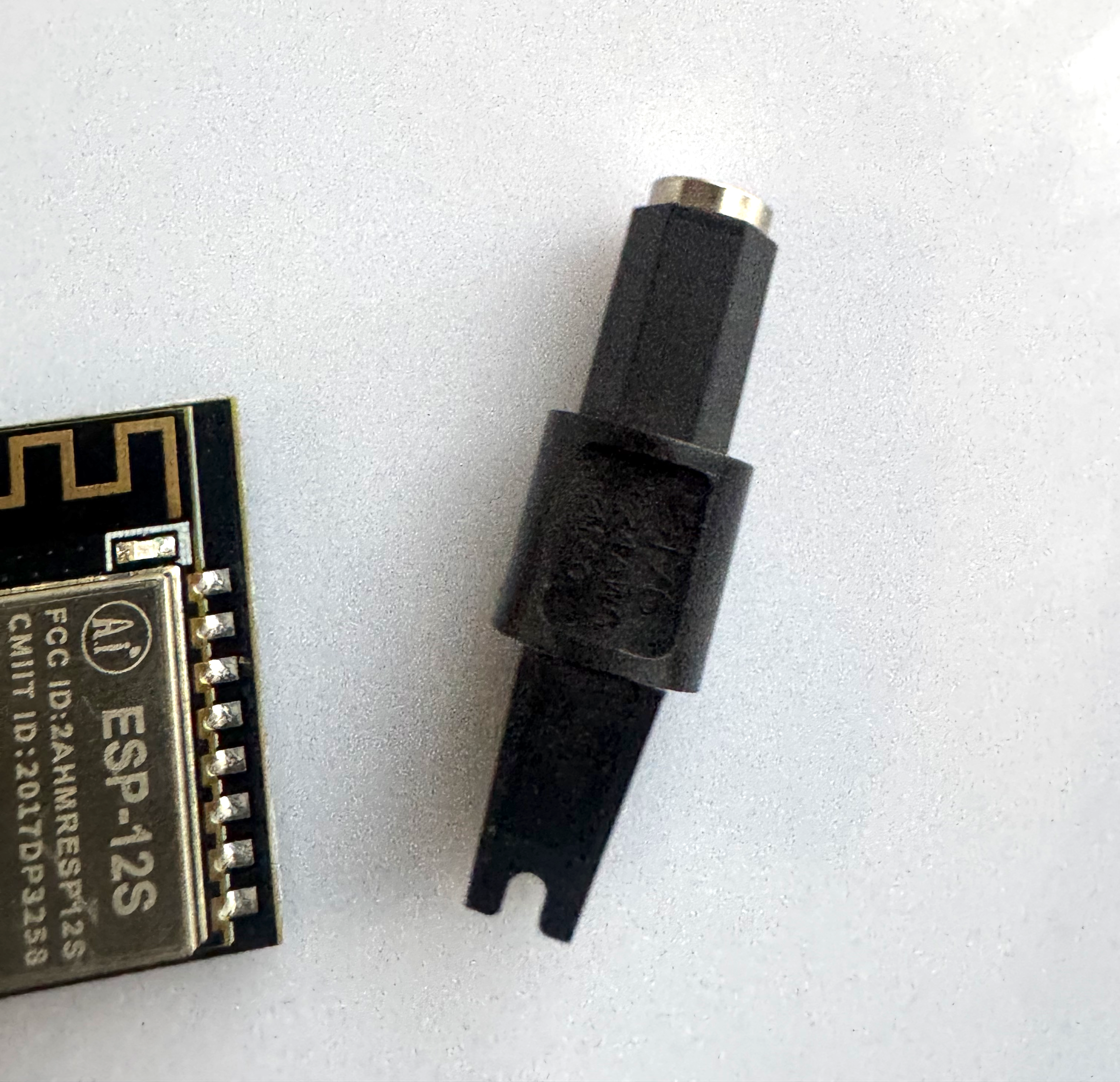

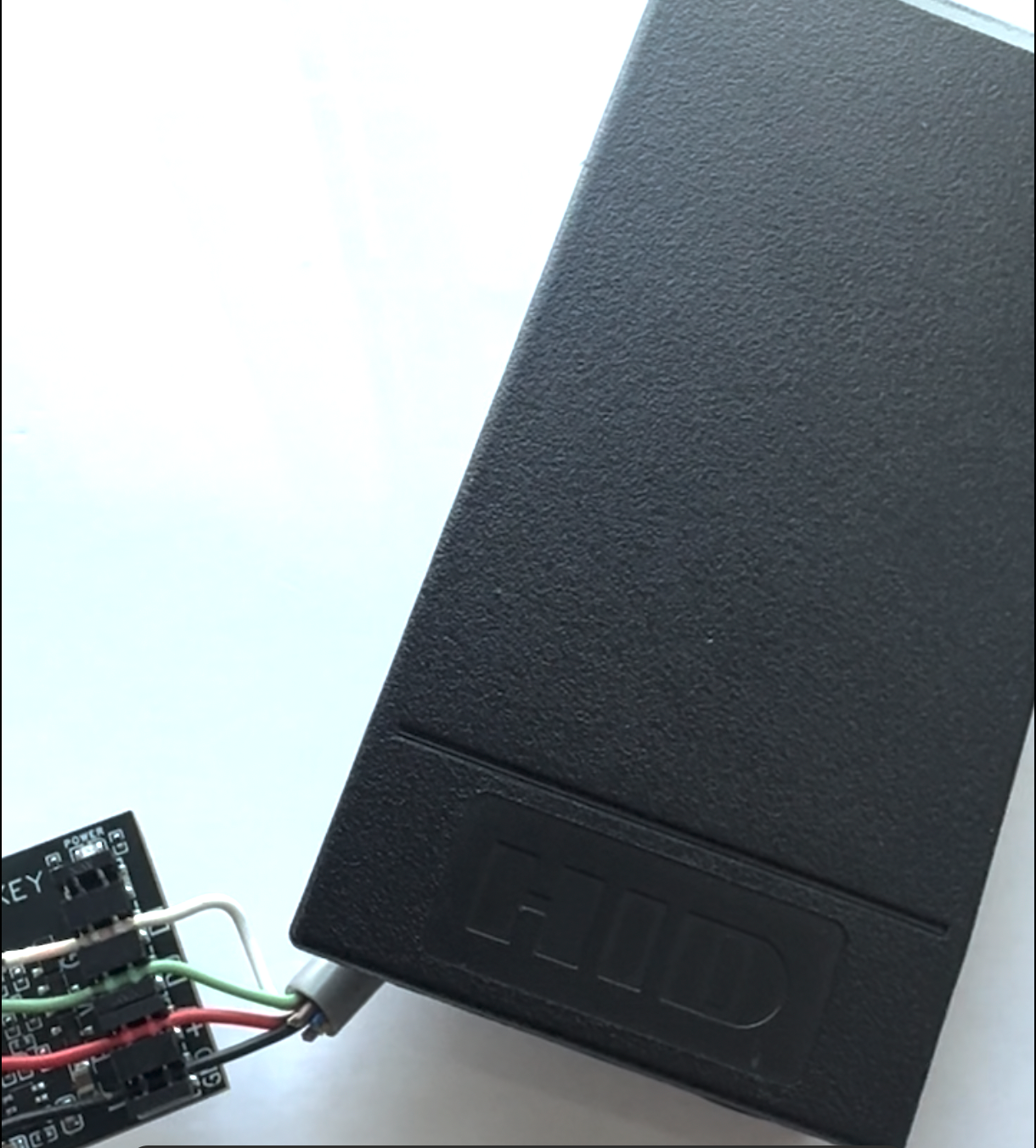

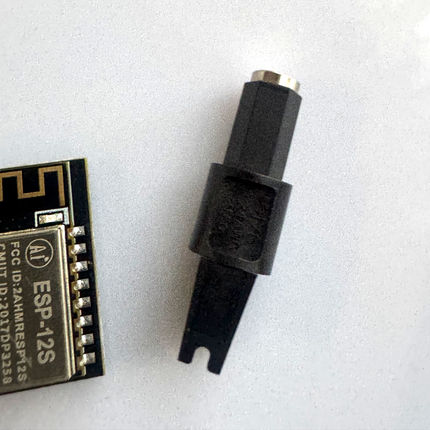

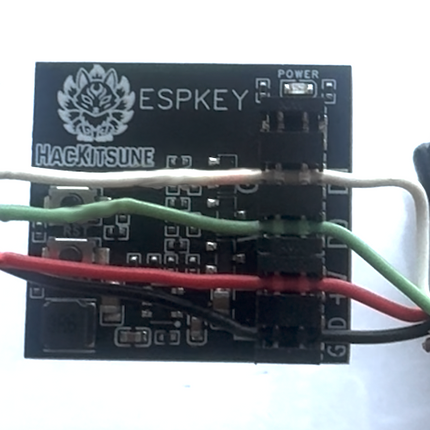

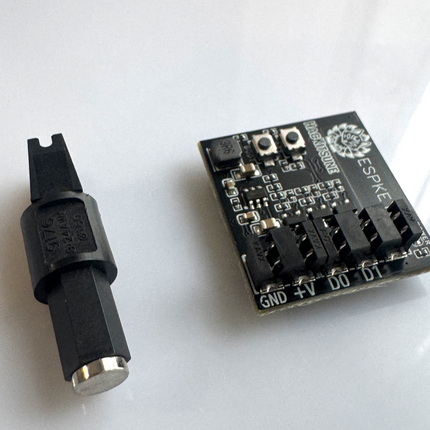

Featuring a punchdown cable interface to allow you to tap into exposed cables coming from a range of card readers, once installed, the module can capture credential bitstreams in transit, store them in onboard non-volatile memory (up to ~80,000 records depending on format), and replay them via its built-in Wi-Fi web interface .
Small enough to fit behind most readers, yet powerful enough to demonstrate real-world access control weaknesses, ESPKey is a practical tool for authorised red team engagements, system validation, and security training .

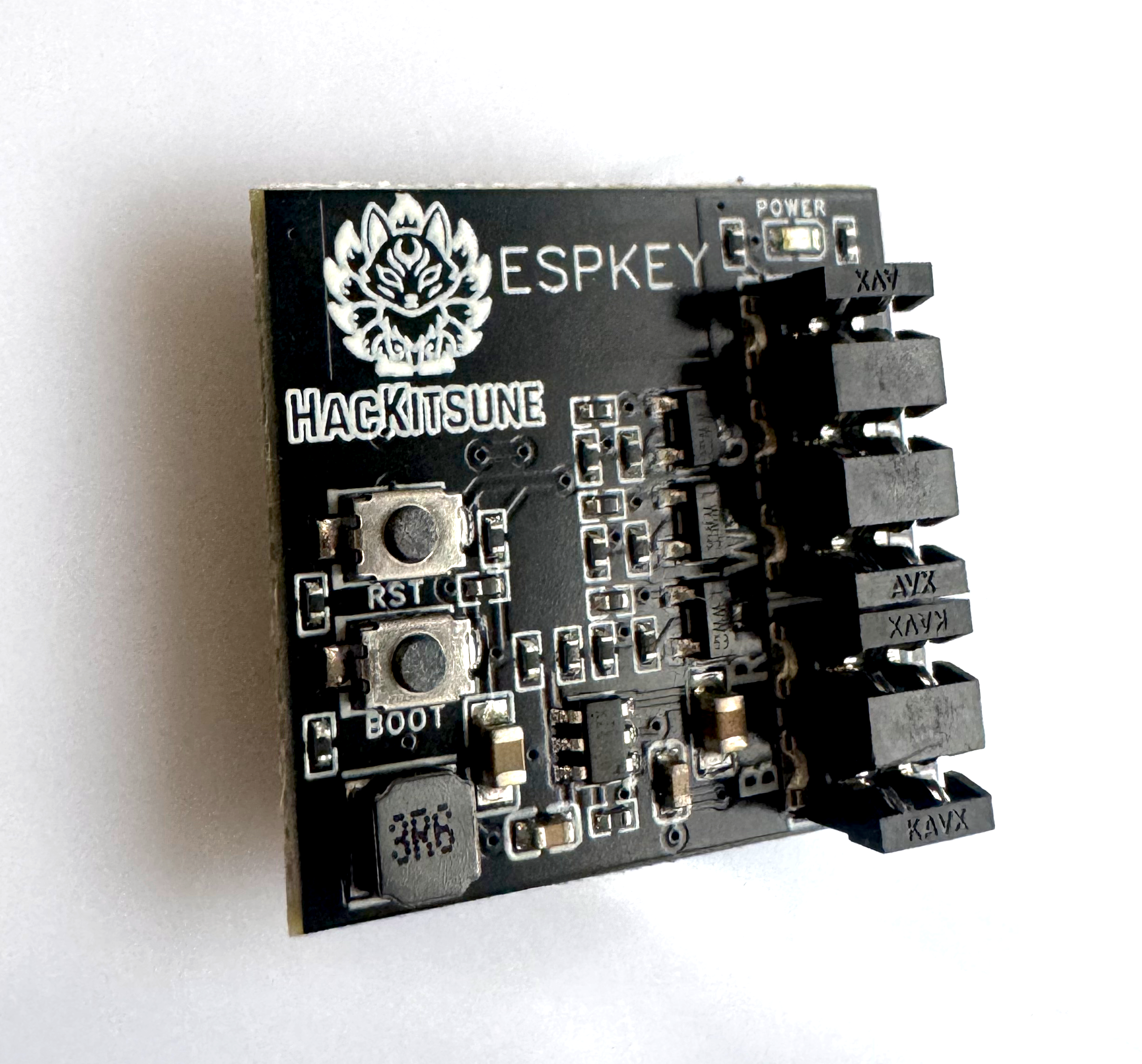

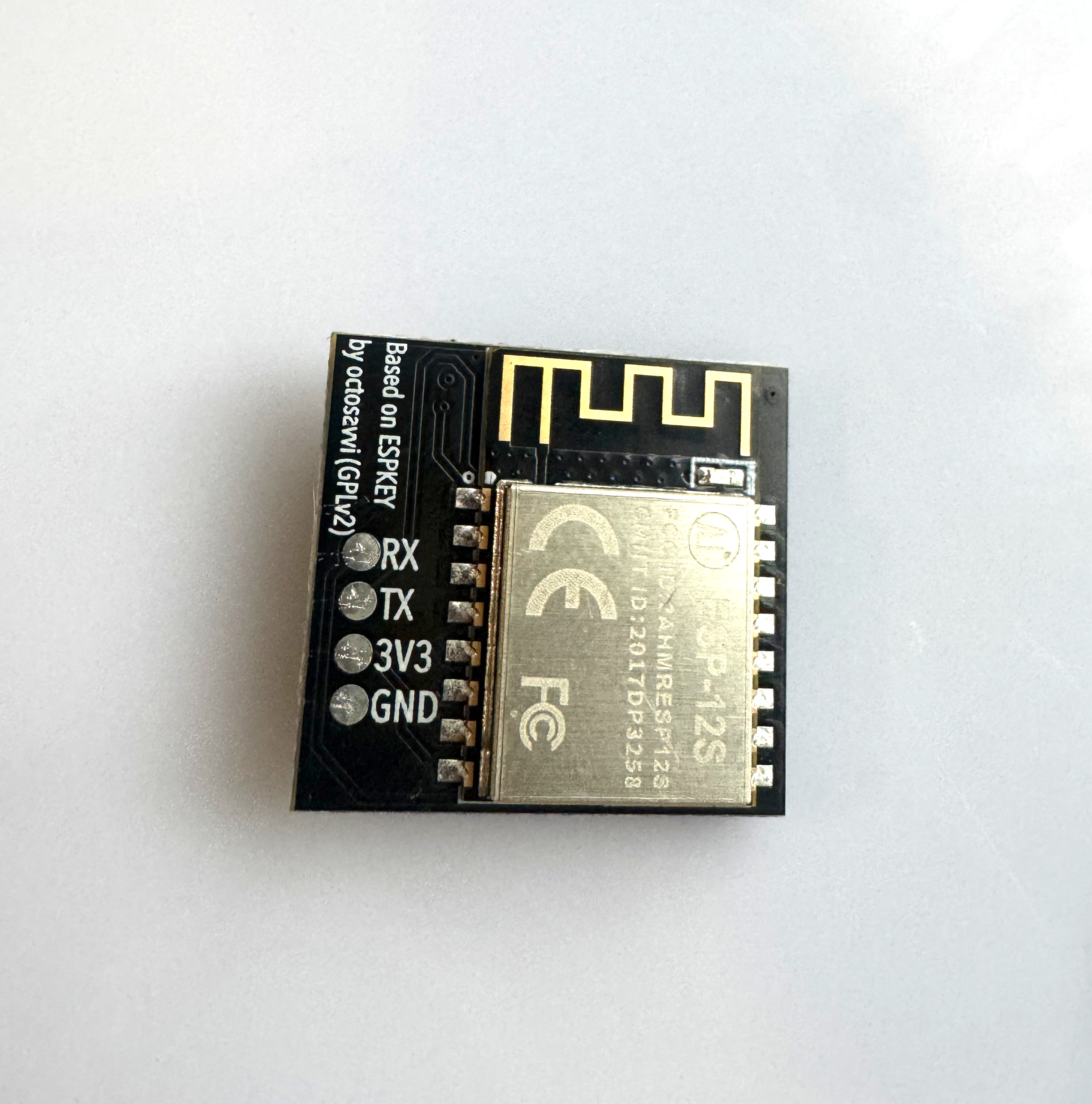

This module is based on the original open-source hardware and firmware by OctoSavvi , with updates to the design to make it easier to flash (via pins on the back of the ESPKey using a compatible FTDI serial adaptor or similar.) Boot and Reset buttons have been added to make the flash process easier, we recommend using a pin clamp or pin clip to avoid having to solder contacts to the pcb.
In the spirit of Open Source updated Hackitsune PCB designs and build files available github
Small enough to fit behind most readers, powerful enough to demonstrate real-world vulnerabilities.
Technical Requirements
• Compatible access control system using 5V Wiegand interface
Installation Overview

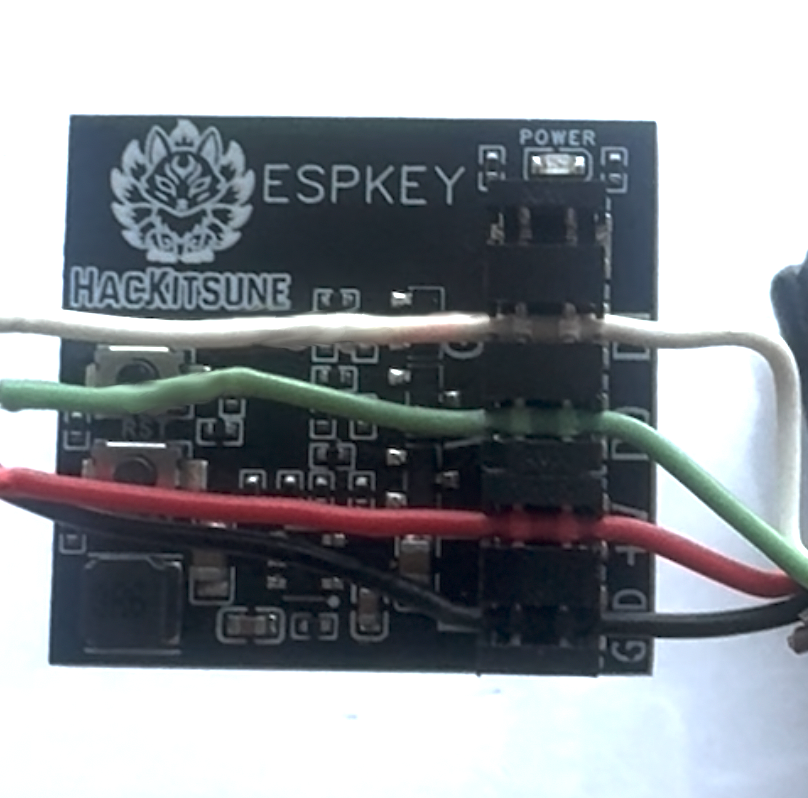

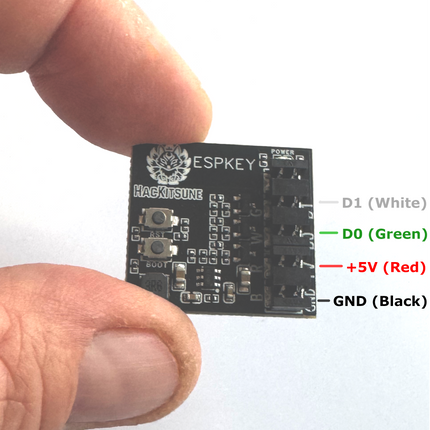

• Connect between reader and panel using Wiegand lines (D0, D1, GND, VCC)
Firmware
Pre-installed:
• Latest ESPKey firmware (shipped ready to use)
Firmware Updates
Firmware can be installed or updated using the Hackitsune Web Flasher (supported browsers only):
https://www.hackitsune.com/pages/hackitsune-web-flasher
Post-Flash Storage Setup (Important)
After flashing ESPKey firmware, you must initialise the onboard storage:
Connect your laptop to the ESPKey Wi-Fi access pointESPKEY- *)
Download and run the storage setup script locally:ui-update.sh
This process prepares the filesystem for credential storage
Note:
How to Use
Install ESPKey inline between the reader and controller
Power the system using standard Wiegand supply
Connect to the ESPKey Wi-Fi access point
Access the web interface via browser
Capture, store, and replay credential data as required
Important Usage Notes
• Designed for 5V Wiegand systems only
Preventative Measures to Mitigate Risk of Use
• Only use on systems you are authorised to test
Product Specifications
Specification
Details
Interface
Wiegand (D0/D1)
Voltage
5V
Connectivity
Wi-Fi (web interface)
Storage
~80,000 credentials (format dependent)
Operation Mode
Inline interception and replay
Firmware
ESPKey (pre-installed)
Open Source Base
OctoSavvi ESPKey
Hardware Files
GitHub
Form Factor
Compact inline module
Use Case
Access control testing and diagnostics
Key Features
• Inline Wiegand interception and replay moduleOctoSavvi ESPKey platform
Disclaimer
Hackitsune hardware is designed for professional security research, development, and authorised testing purposes only. Users are responsible for ensuring compliance with all applicable laws and regulations in their jurisdiction. Always obtain proper authorisation before interacting with systems, networks, or devices you do not own.
Hackitsune accepts no liability for misuse of this product. Use responsibly. 🦊
